Injection Molders for complex insert molding

Mould Type: Automotive Electrodes

Production Material: PA6 33% glass fiber black

No of Cavities: 2 cavities

Core Material: S7

Cavity Material: S7

Mold base steel: 1.1730 with A/B plate 1.2312

Injection System: Cold runner

Type of gating: sub gate

Ejection system: Round ejector pins

Lead time: 6 weeks

Shot life: 1,000,000

Export to: America

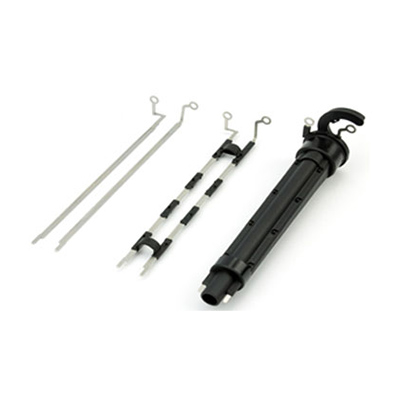

Feature: two times over molding, first over molding PA6 33%GF with metal parts, and second over molding with the pre-over molding, the first over-molding is to fix the metal part and also ensure the pre-over molding can be fixed in the second over-molding.


Insert molding is a very nice way to combine plastics and metal into a single product. This allows the plastic to bond to metal inserts that go inside a mould cavity, helping people to make better components. Insert molding is ideal for prototyping and production components. Metal inserts are more durable and guarantee thread function and reduce wear during part life. In HanKing more than twenty years of plastic mold making experiences, we manufactured a lot of insert moulds for our global clients. HanKing has the confidence to make complex insert mold.
