Over Molding Process Part

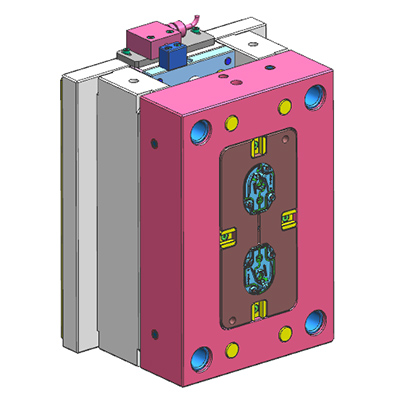

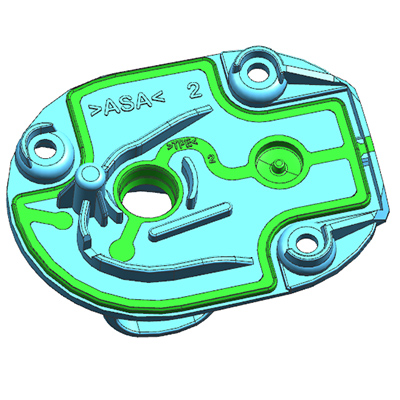

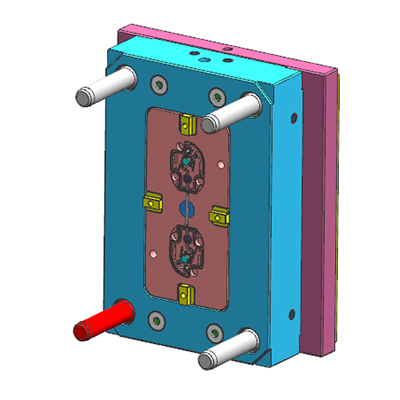

It's a 2 cavities over-mould for plastic water plug cover.

After received the mould kick-off information, first we will make DFM(design for mould) analysis. For this mould, the DFM should covered

  1. Parting line

  2. Gate position and style

  3. Insert in cavity side

  4. Insert in core side

  5. Slider

  6. Lifter

  7. Ejector

  8. Process of the visible surface

  9. Draft analysis

  10. Thickness analysis for the plastic part

  11. Part optimization design

For all the moulds, HanKing will make detailed analysis and give customer optimization suggestion, please contact us for your new project.
