High Gloss Polish Mould

Transparent High Polish Injection Mould for customer coffee grinder hopper and cover.

It is transparent PCTG plastic resin which is food grade, very critical for appearance finishing,

No sink mark and ejector in the surface.

High requirement for ejector system as well as cooling system.

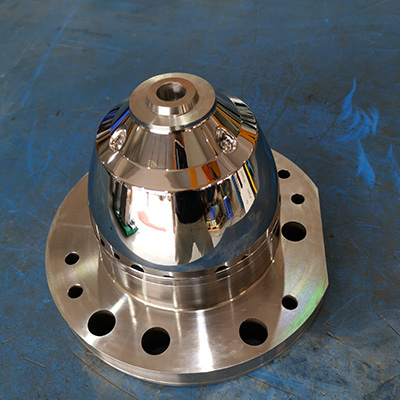

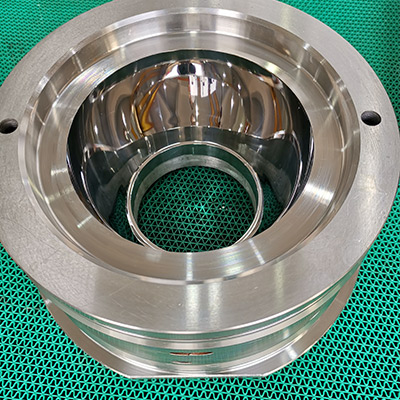

Individual cavity and core insert with Stavax S136 steel.

High glossy polished cavity and core side.

Part weight is nearly 270g.

Mould size 500*500*563 MM, the weight is over 1000 KG.
